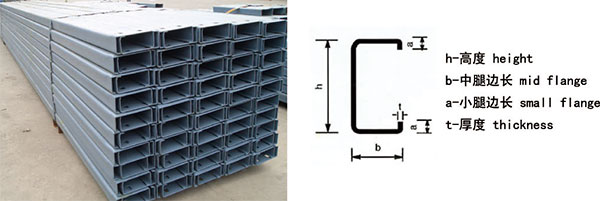

C型钢基本尺寸及主要参数
C type steel basic dimensions and main parameters
| 序号 order number | 尺寸 size | 重量 weight | 惯性矩 Moment of inertia | ||||
| mm | kg | cm² | |||||
| h | b | a | t | M | Jx | Jy | |
| 1 | 80 | 40 | 20 | 2.5 | 3.925 | 46.22 | 11.56 |
| 2 | 100 | 50 | 20 | 2.5 | 4.710 | 90.56 | 21.30 |
| 3 | 100 | 50 | 20 | 3.0 | 5.652 | 106.60 | 24.78 |
| 4 | 140 | 60 | 20 | 2.5 | 5.495 | 186.80 | 22.11 |
| 5 | 140 | 60 | 20 | 3.0 | 6.594 | 235.90 | 27.84 |
| 6 | 160 | 60 | 20 | 3.0 | 7.536 | 361.00 | 45.14 |
| 7 | 160 | 70 | 20 | 3.0 | 8.007 | 373.60 | 60.42 |
| 8 | 180 | 70 | 20 | 3.0 | 8.478 | 523.50 | 68.12 |
| 9 | 200 | 70 | 20 | 3.0 | 8.949 | 669.90 | 70.40 |
| 10 | 220 | 70 | 20 | 3.0 | 9.420 | 838.40 | 72.44 |
| 11 | 240 | 70 | 20 | 3.0 | 9.891 | 1030.00 | 74.28 |
| 12 | 250 | 70 | 20 | 3.0 | 10.127 | 1135.00 | 75.13 |
| 13 | 280 | 70 | 20 | 3.0 | 10.833 | 1488.00 | 74.77 |
| 14 | 350 | 80 | 20 | 3.0 | 12.953 | 2735.00 | 114.20 |
| 15 | 400 | 80 | 20 | 3.0 | 14.130 | 3783.00 | 117.80 |
| 16 | 450 | 100 | 20 | 3.0 | 16.250 | 5650.00 | 212.20 |
![CPb2[1].jpg](static/picture/5a5c3aa044e87.jpg "5a5c3aa044e87.jpg")
![CPb3[1].jpg](static/picture/5a5c3aad9eaef.jpg "5a5c3aad9eaef.jpg")

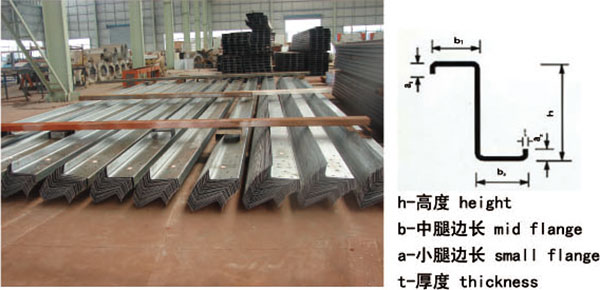

Z型钢基本尺寸及主要参数
Z type steel basic dimensions and main parameters
| 序号 order number | 尺寸 size | 重量 weight | 惯性矩 Moment of inertia | ||||
| mm | kg | cm² | |||||
| h | b | a | t=r | M | Jx | Jy | |
| 1 | 140 | 50 | 20 | 3.0 | 6.594 | 217.26 | 40.83 |
| 2 | 160 | 50 | 20 | 2.5 | 5.889 | 259.338 | 36.367 |
| 3 | 180 | 60 | 20 | 2.5 | 6.673 | 383.564 | 58.785 |
| 4 | 180 | 60 | 20 | 3.0 | 8.007 | 449.734 | 67.609 |
| 5 | 200 | 60 | 20 | 2.5 | 7.065 | 492.800 | 56.788 |
| 6 | 200 | 60 | 20 | 3.0 | 8.478 | 578.468 | 67.613 |
![CPb_01[1].jpg](static/picture/5a5c3b140cf17.jpg "5a5c3b140cf17.jpg")
![CPb_02[1].jpg](static/picture/5a5c3b22bc044.jpg "5a5c3b22bc044.jpg")
![CPb_03[1].jpg](static/picture/5a5c3b3381159.jpg "5a5c3b3381159.jpg")
![CPb_04[1].jpg](static/picture/5a5c3b3f22051.jpg "5a5c3b3f22051.jpg")
